(A)20 L/min−0.1 MPa (with end cap)
(B)30 L/min−0.06 MPa (without end cap)
The O-ring and end capare as an optional extras.

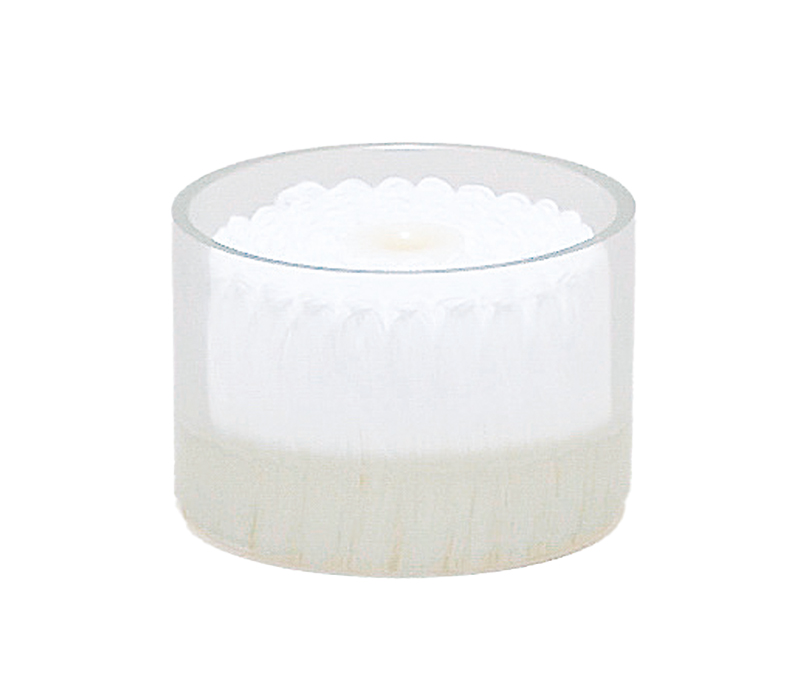

Model No.MSDC
Filter area
0.14 m2
Case Material
ABS
Size
Length
32.6 mm
Diameter
φ48.9
Initial flow rate
9 L/min−0.1 MPa
Model No.MCNC
Filter area
0.16 m2
Case Material
ABS
Size
Length
48 mm
Diameter
φ41
Initial flow rate
6 L/min−0.1 MPa
Hollow fiber membrane capsule filter for air and water

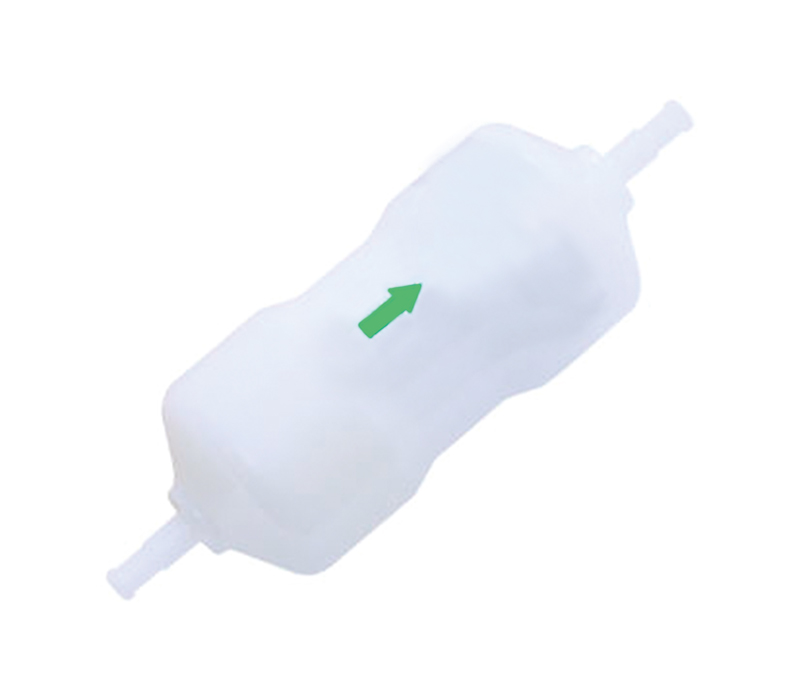

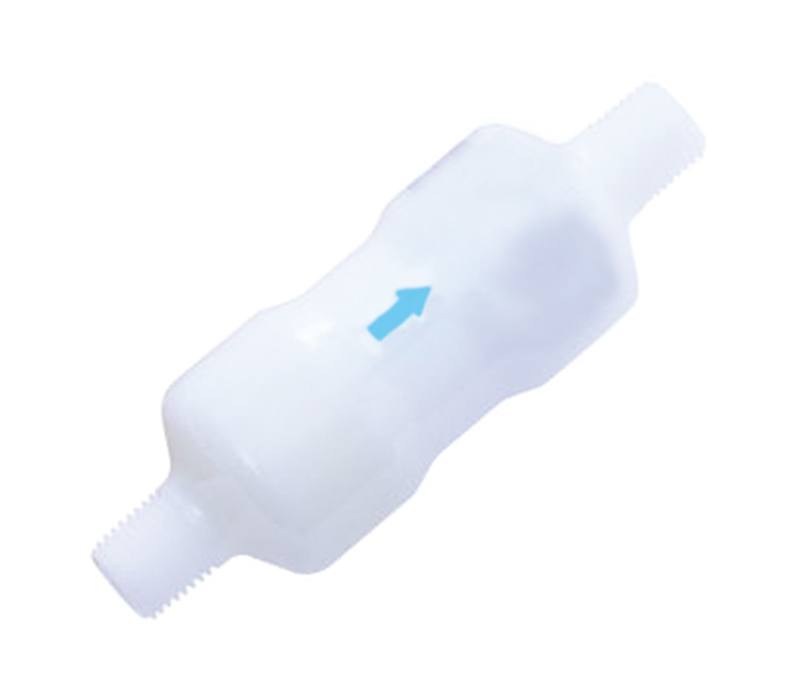

Model No.30M0007HP 40M0007HP
Capsule air filter
Capsule water filter
Model No.
30M0007HP
40M0007HP
Nominal Pore Size
0.1 μm
0.1 μm
Effective Membrane Area
0.07 m2
0.07 m2
Dimentsions
Length
98 mm
98 mm
Maximum Outer Diameter
32 mm
32 mm
Material
Case
Polycarbonate
Polycarbonate
Sealant
Polyurethane
Polyurethane
Operating Pressure
≦ 0.1 MPa
≦ 0.1 MPa
Operating Temperature Range
1- 45 ℃
1- 45 ℃
Connection Size
R 1/4 (PT 1/4)
R 1/4 (PT 1/4)
Initial Air / Water Flow Rate*
42 NL/min at 0.01 MPa
1 L/min at 0.03 MPa

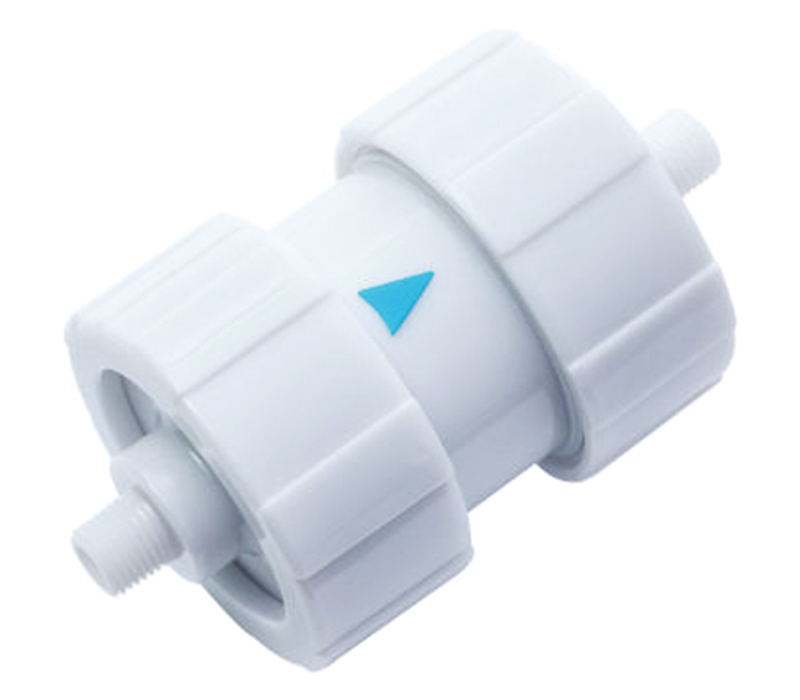

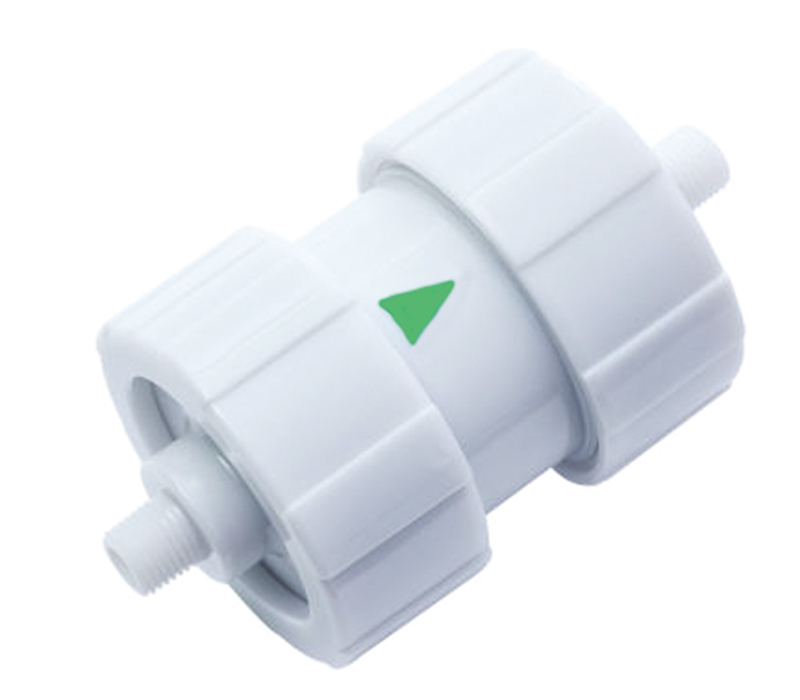

Model No.30M0030JP 40M0030JP
Capsule air filter
Capsule water filter
Model No.
30M0030JP
40M0030JP
Nominal Pore Size
0.1 μm
0.1 μm
Effective Membrane Area
0.3 m2
0.3 m2
Dimentsions
Length
123 mm
123 mm
Maximum Outer Diameter
69 mm
69 mm
Material
Case
Polycarbonate
Polycarbonate
Sealant
Polyurethane
Polyurethane
Operating Pressure
≦ 0.49 MPa
≦ 0.49 MPa
Operating Temperature Range
1- 45 ℃
1- 45 ℃
Connection Size
R 1/4 (PT 1/4)
R 1/4 (PT 1/4)
Initial Air / Water Flow Rate*
140 NL/min at 0.01 MPa
4 L/min at 0.03 MPa

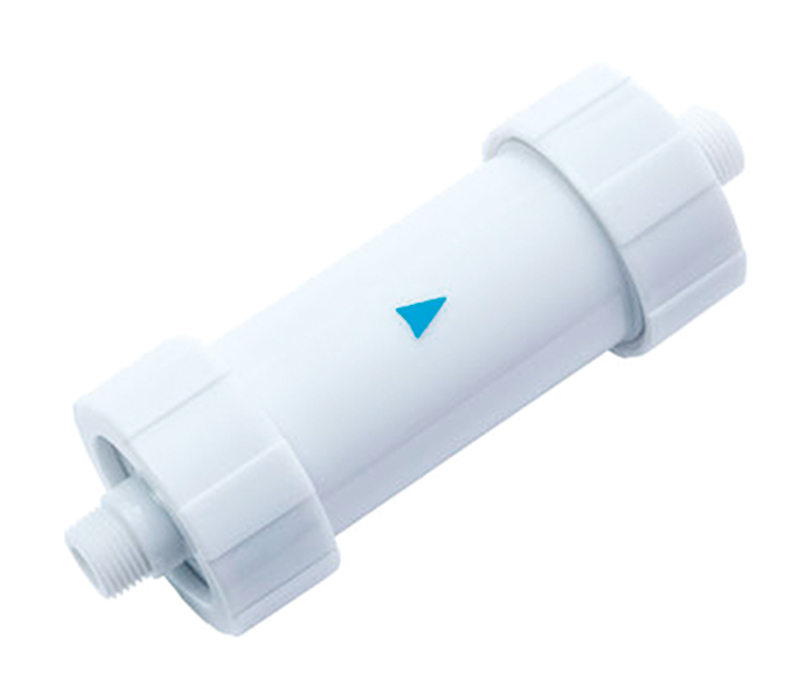

Model No.40M0090Q
Capsule water filter
Model No.
40M0090Q
Nominal Pore Size
0.1 μm
Effective Membrane Area
0.9 m2
Dimentsions
Length
192 mm
Maximum Outer Diameter
69 mm
Material
Case
Polycarbonate
Sealant
Polyurethane
Operating Pressure
≦ 0.3 MPa
Operating Temperature Range
1- 45 ℃
Connection Size
R 1/2 (PT 1/2)
Initial Water Flow Rate*
8 L/min at 0.03 MPa
*Initial flow rate are reference values, not guaranteed ralues.
Hollow fiber membrane 10 inch filter cartridges for water

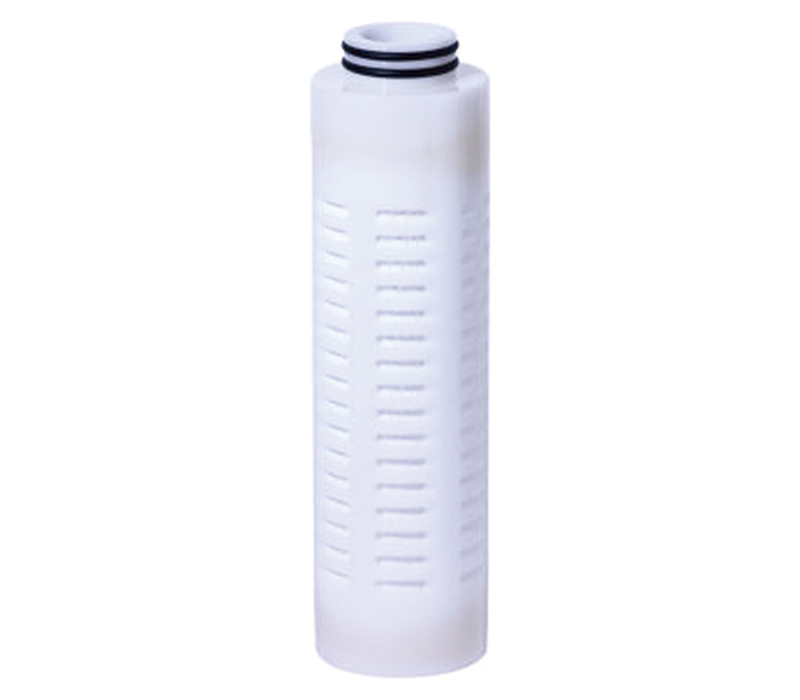

Model No.40E0240KP
Nominal Pore Size
0.1 μm
Effective Membrane Area
2.4 m2
Dimentsions
Length
258 mm
Maximum Outer Diameter
70 mm
Material
Case
Polycarbonate
Sealant
Polyurethane
Operating Pressure
≦ 0.2 MPa
Operating Temperature Range
1- 45 ℃
Connection
O ring
Initial Water Flow Rate
37 L/min at 0.05 MPa

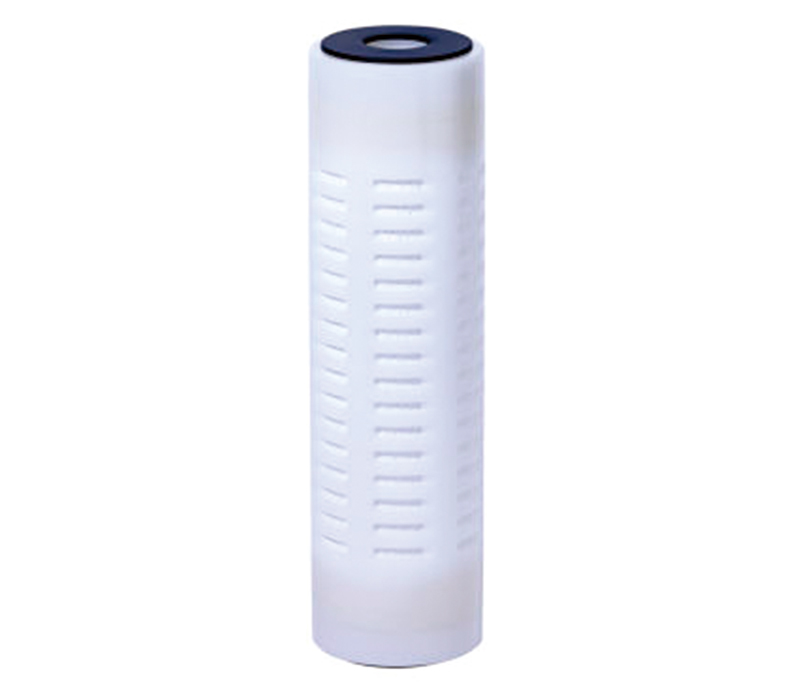

Model No.40E0180KX
Nominal Pore Size
0.1 μm
Effective Membrane Area
1.8 m2
Dimentsions
Length
249 mm
Maximum Outer Diameter
70 mm
Material
Case
Polycarbonate
Sealant
Polyurethane
Operating Pressure
≦ 0.2 MPa
Operating Temperature Range
1- 45 ℃
Connection
Gasket
Initial Water Flow Rate
32 L/min at 0.05 MPa
Hollow fiber membrane POE filter cartridge for water
Model No.MPOE050E
Filter area
5 m2
Case Material
PVC
Size
Length
452 mm
Diameter
φ94.9
Initial flow rate
18.8 L/min−0.1 MPa
27.5 L/min−0.2 MPa
Hollow Fiber Membrane of Cleansui
Environment-friendly
The membrane is made of environment-friendly polyethylene polymers, through a combination of a melt-spinning process and
a drawing process. As a result, the membranes are clean.
Outstanding Flexibility
Superb flexibility enables PE membranes to be used in a diverse range of products, from small to large-scale filters.
Superior mechanical strength and resistance to acid and alkali make these membranes exceptionally durable.
Hydrophilic and Hydrophobic Membranes Available
Hydrophilic membranes can be used instantly, as water can be transmitted through them even in a dry state. Preservative solution is not required.Similarly, hydrophobic membranes are used as air filters. Mitsubishi Chemical supplies both types of membranes.
Hygienic
Inner side of the hollow fiber membranes, which are purified water (or gas) way, are kept within the membranes
throughout the product process, from membrane formation to elements product processing. Because they are never exposed to external pollutants, they are maintained in clean condition at all times.
Feature of Air and Water Filters
Compact Size with Large Area and Long Operating Life
Flexible hollow fiber membranes enables a large membrane area to be packed into a compact case, ideally for incorporation into various devices. Hollow fiber membranes deliver about 4 times the surface area of pleated flat membranes, enabling long operating life.
Membrane Surface Comparison

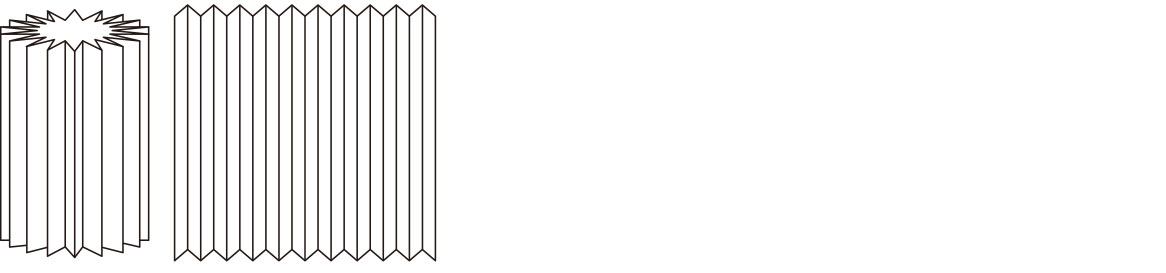

Schematic drawing of pleating of a flat membrane

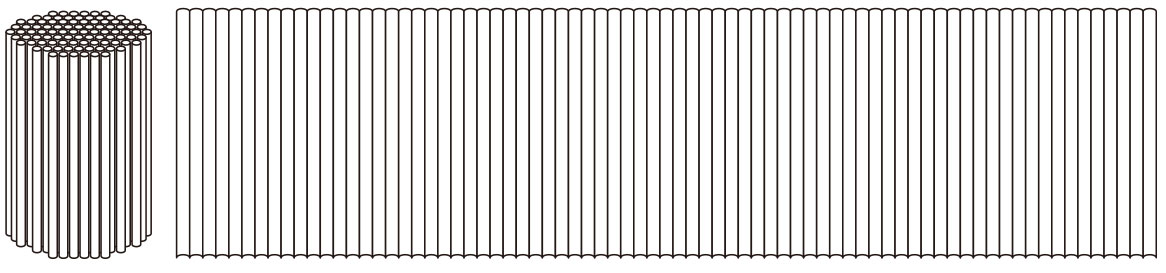

Schematic drawing of hollow fiber membrane
Automatic Air Bubble Removal ( For Water Filter )
A small number of hydrophobic membrane mixed in the products work to prevent "air-lock" by carrying out air bubbles.
Extensive Product Lineup
Mitsubishi Chemical offers an extensive lineup of products to suit various applications. Capsule type and cartridge type
are available.
Applications
Water purification equipment for emergency and disaster use
Water filters for household use
Particle counters
Medical gas filters and mist filters
Filters for production of bacteria-free water
Desktop equipment for production of ultrapure water
